VFG 250 Frameless Grille

VFG 250 Frameless Grille

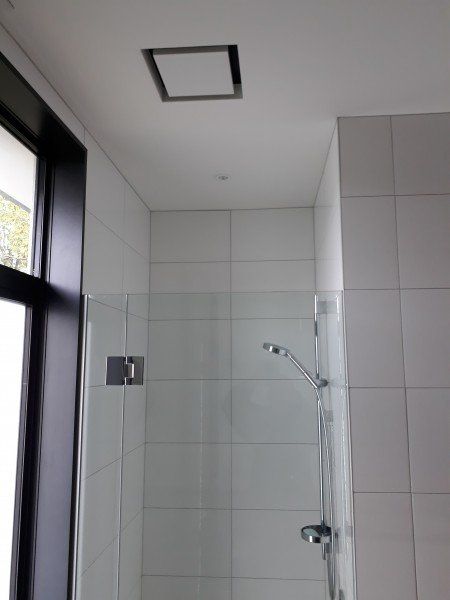

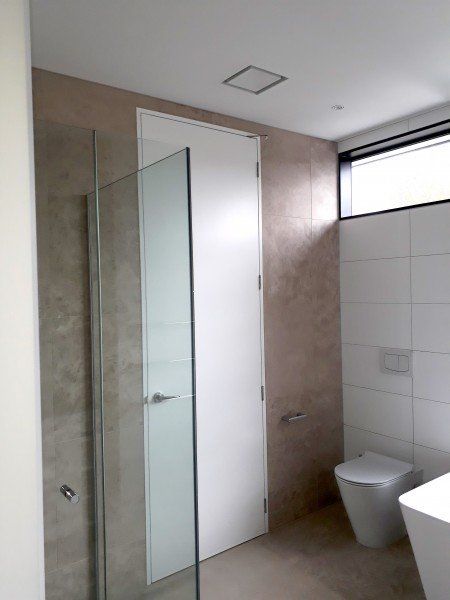

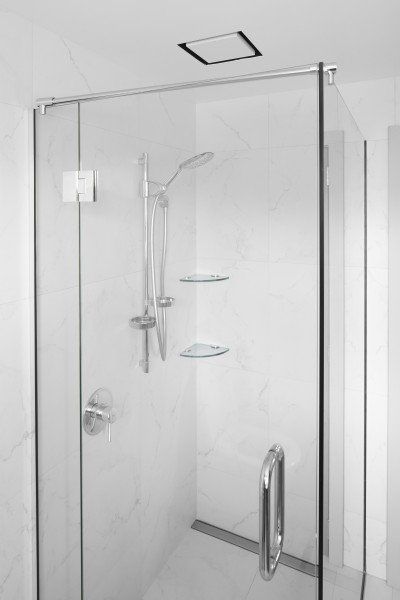

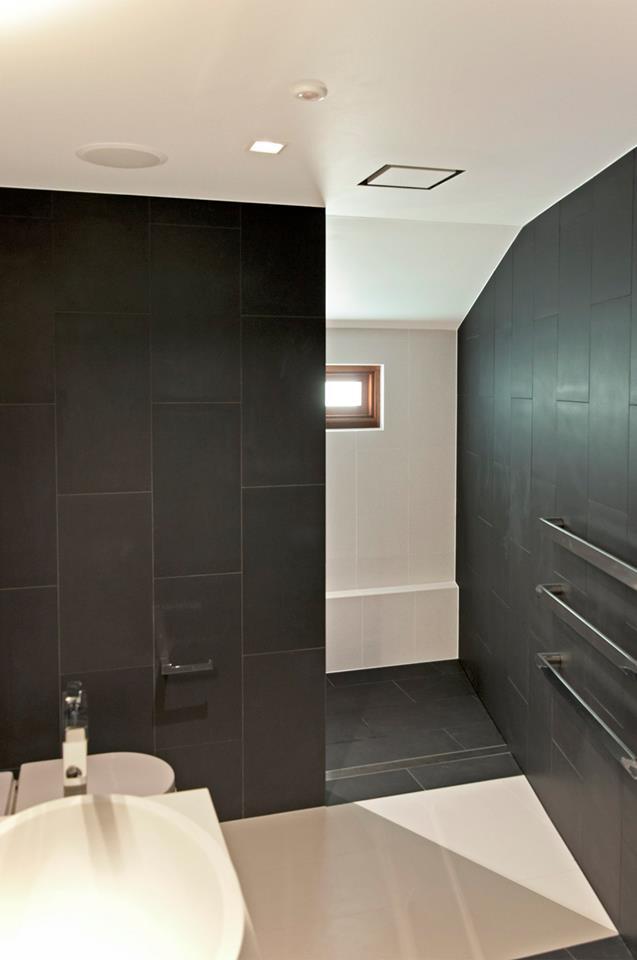

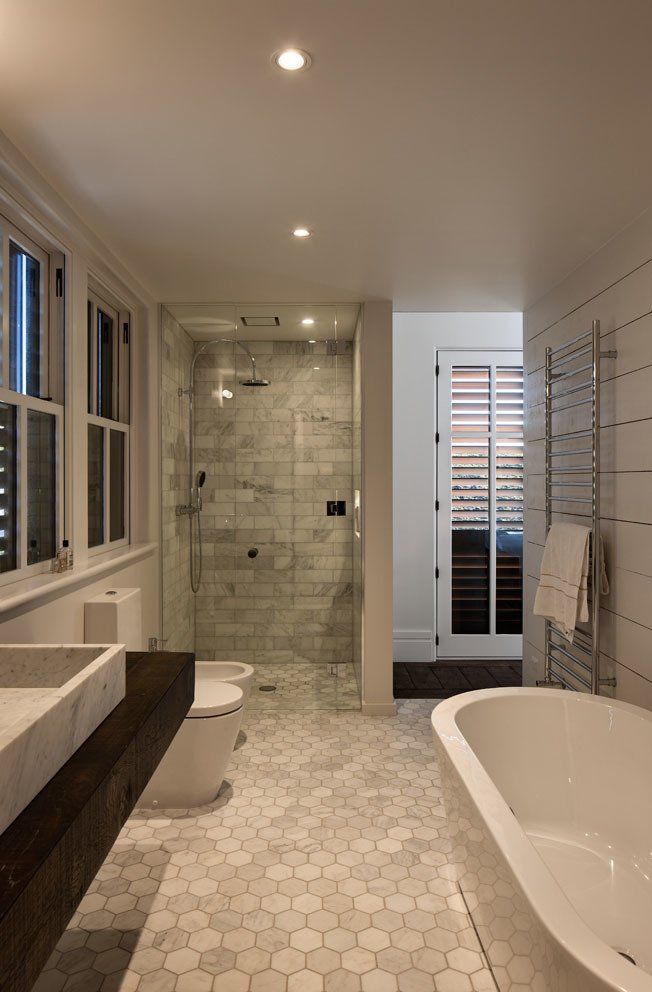

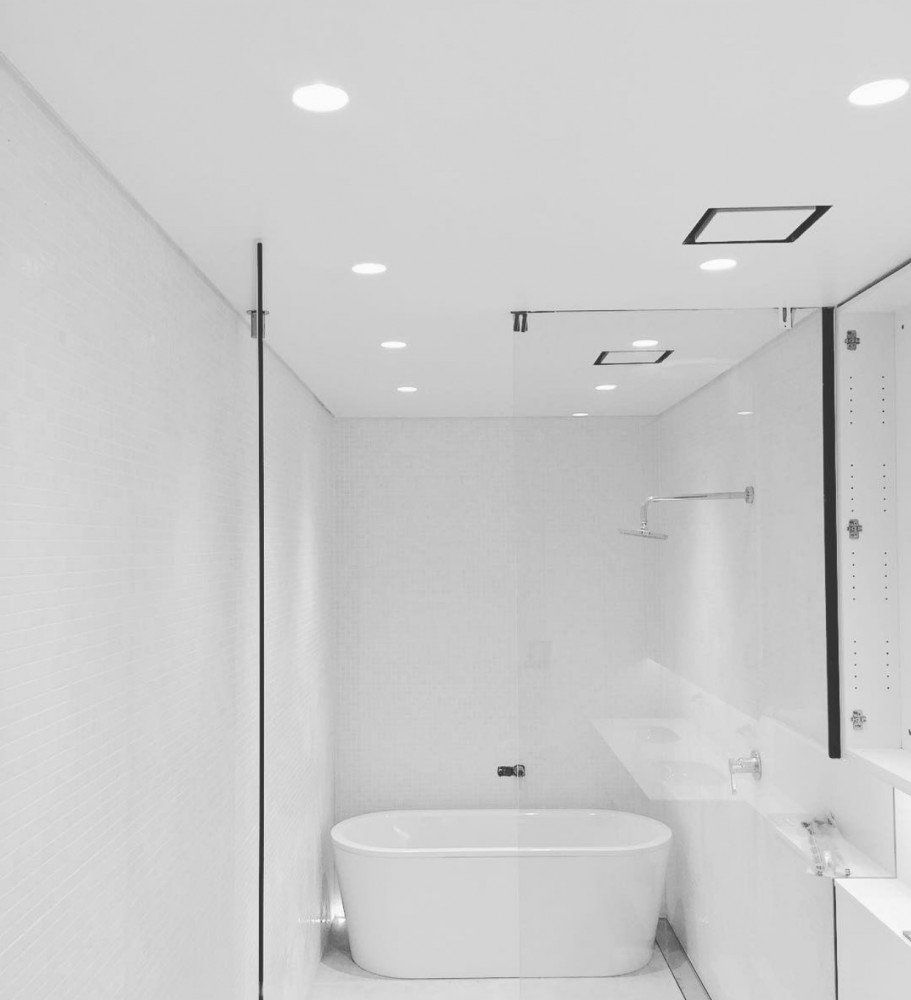

The ultimate in discreet bathroom and laundry ventilation for a new build. The negative detail grille is fitted into the ceiling at the gib lining stage and can be painted to match the planned decor. Coupled with a Ventpro high performance fan and ducting, it’s the closest you’ll come to invisible.

For Bathrooms, Showers, Laundries, Kitchens. Plaster board or tiled ceilings and walls Dimensions: 250 x 250 overall Plaque size: 200 x 200 Standard top exit 150 diameter spigot Custom sizes to order

  • A minimalist grille showing a negative detail 250mm square 25mm wide x 50mm deep.
  • Framework and fixings are integral and hidden
  • Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the central plaque and spigot using simple and completely invisible screwed fixing.
  • The exposed surface of the plaque is level with the ceiling and can be painted if required at the same time as the ceiling.

Specification:
  • Ventpro VFG 250 Frameless Grille with 150mm spigot top entry.
  • Frame and plaque powder coated, may be painted to match the ceiling
  • Suitable fans, ductwork and exterior grilles also available.
  • Fitting: Cut 250 sq hole in ceiling. Fit grille box from the underside and fix with 2 gib screws through the plastering edge.
  • Plaster the edges flush with the ceiling.
  • After painting the ceiling and the box, pull the duct down through the hole and fix to the spigot and plate.
  • Fit the spigot plate with the screws provided
